744089410022
Manufacturer:
Wurth Electronics
Mfr.Part #:
744089410022
Datasheet:
Description:

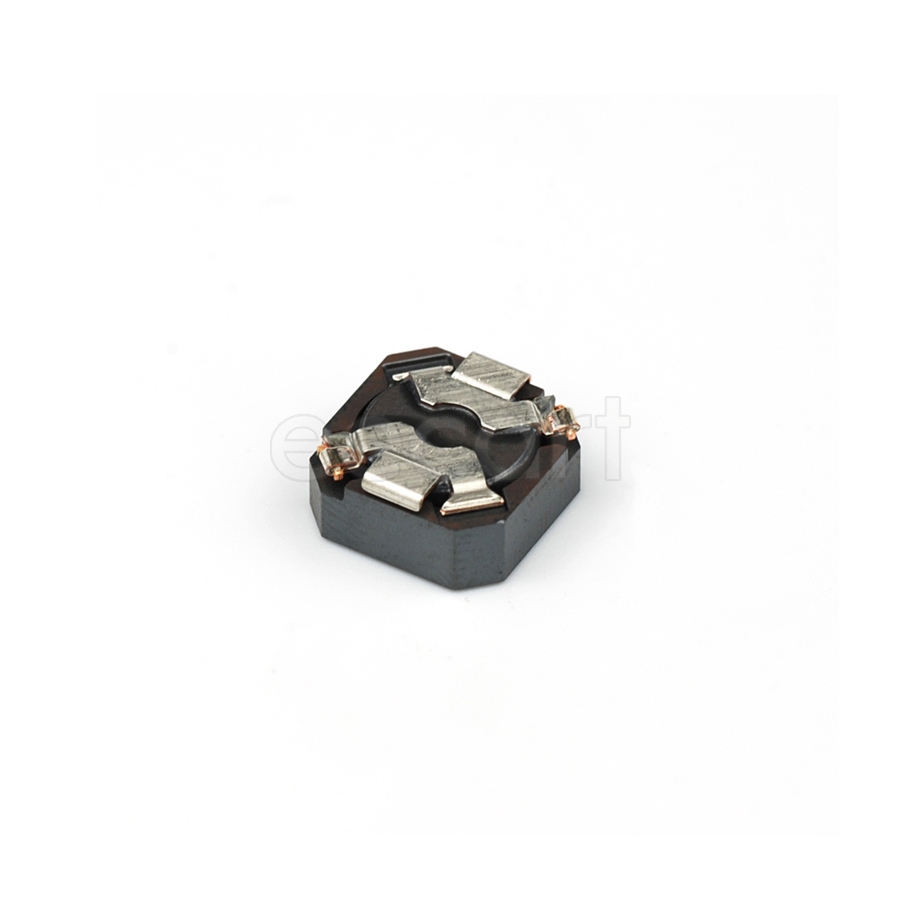

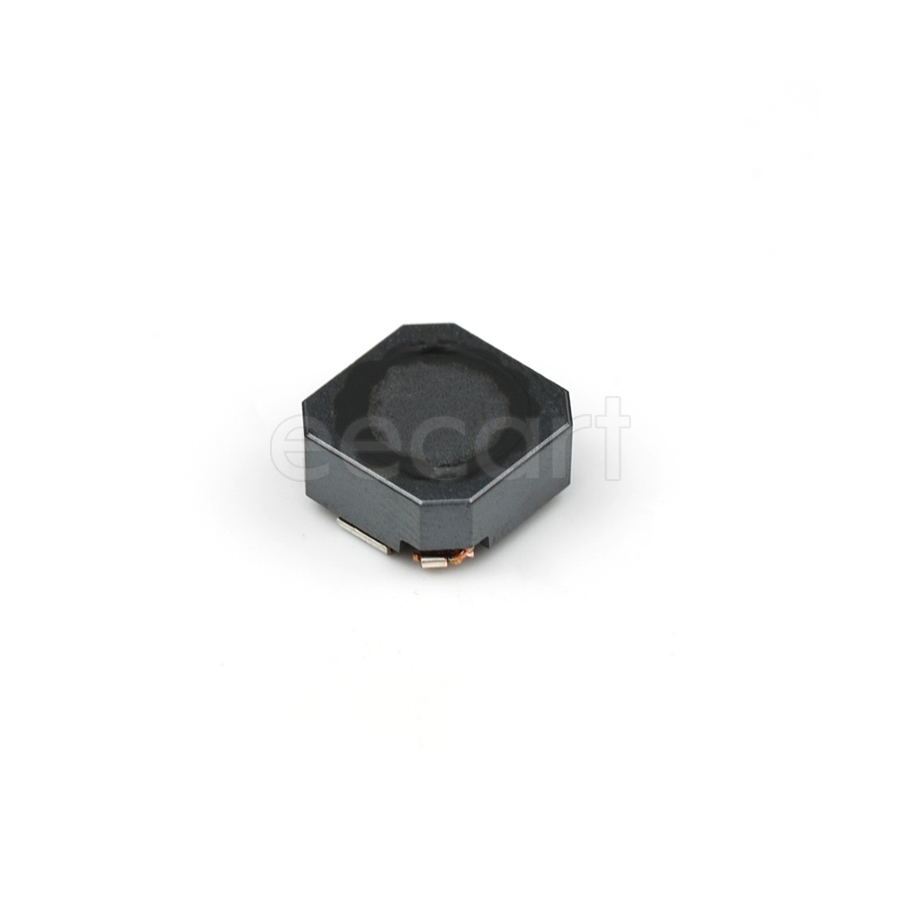

Fixed Inductors 1919(4848 Metric) SMD/SMT 220 nH 30 % 4.5 A 15 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 30 % |
| Height - Seated (Max) | 2.1 mm |
| Length | 4.8 mm |
| Width | 4.8 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Height | 1.8 mm |
| Packaging | Reel |
| RoHS | Compliant |
| Self Resonant Frequency | 230 MHz |
| Type | Wirewound |
| Current Rating | 4.5 A |
| DC Resistance (DCR) | 15 mΩ |
| Test Frequency | 100 kHz |
| Shielding | Shielded |
| Inductance | 220 nH |
| Core Material | Ferrite |
| inductance tolerance | 30 % |
| Saturation Current | 9.5 A |
Stock: 127
Distributors
pcbx
pcbxUnit Price$1.39512
Ext.Price$1.39512
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.39512 | $1.39512 |
| 10 | $1.37152 | $13.71520 |
| 25 | $1.34563 | $33.64075 |
| 50 | $1.32023 | $66.01150 |
| 100 | $1.27016 | $127.01600 |
| 300 | $1.07743 | $323.22900 |
| 500 | $0.91395 | $456.97500 |
